OPA4340EA/250 IC CMOS 4 CIRCUIT 16SSOP Texas Instruments

Name: OPA4340EA250 IC CMOS 4 CIRCUIT 16SSOP Texas Instruments
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : OPA4340EA/250

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Amplifier Type : CMOS

Number of Circuits : 4

Output Type : Rail-to-Rail

Slew Rate : 6V/µs

Gain Bandwidth Product : 5.5 MHz

-3db Bandwidth : -

Current - Input Bias : 0.2 pA

Voltage - Input Offset : 150 µV

Current - Supply : 750µA (x4 Channels)

Current - Output / Channel : 50 mA

Voltage - Supply Span (Min) : 2.5 V

Voltage - Supply Span (Max) : 5.5 V

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 16-SSOP (0.154", 3.90mm Width)

Supplier Device Package : 16-SSOP

Contact Now

Product Details

Description: The OPA4340EA/250 is a high-performance, low-power instrumentation amplifier from Texas Instruments. It features a PSRR of 90.46 dB, a CMRR of 70 dB, a SR of 6 V/us, and a maximum operating temperature of +85 C. It is available in a SSOP-16 package and has a unit weight of 0.002603 oz.

Features:
- PSRR of 90.46 dB
- CMRR of 70 dB
- SR of 6 V/us
- Maximum operating temperature of +85 C
- Available in a SSOP-16 package
- Unit weight of 0.002603 oz
- Operating temperature range of -40 C to +85 C
- Supply voltage range of 2.5 V to 5.5 V

Features:: The OPA4340EA/250 is suitable for a wide range of Features:, including medical instrumentation, industrial process control, and automotive systems. It is also suitable for use in audio and video systems, as well as in power supplies and motor control systems.

Specifications

Attribute	Attribute Value
Manufacturer	Texas Instruments
Product Category	Instrumentation Amplifier
Series	OPA4340
Product	Operational Amplifiers
Packaging	Reel
Unit-Weight	0.002603 oz
Mounting-Style	SMD/SMT
Technology	CMOS
Number-of-Channels	4 Channel
Amplifier-Type	Low Offset Voltage Amplifier
Shutdown	No Shutdown
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Current	3.8 mA
Supply-Voltage-Max	5.5 V
Supply-Voltage-Min	2.5 V
Package-Case	SSOP-16
Ib-Input-Bias-Current	10 pA
Vos-Input-Offset-Voltage	500 uV
PSRR-Power-Supply-Rejection-Ratio	90.46 dB
Vcm-Common-Mode-Voltage	Negative Rail - 0.3 V to Positive Rail + 0.3 V
CMRR-Common-Mode-Rejection-Ratio	70 dB
GBP-Gain-Bandwidth-Product	5.5 MHz
SR-Slew-Rate	6 V/us
en-Input-Voltage-Noise-Density	25 nV/sqrt Hz
In-Input-Noise-Current-Density	0.003 pA/sqrt Hz

Descriptions

General Purpose Amplifier 4 Circuit Rail-to-Rail 16-SSOP

OP Amp Quad GP R-R I/O 5.5V 16-Pin SSOP T/R

Operational Amplifiers - Op Amps Single-Supply Rail-to-Rail

Quality OPA4340EA/250 IC CMOS 4 CIRCUIT 16SSOP Texas Instruments for sale

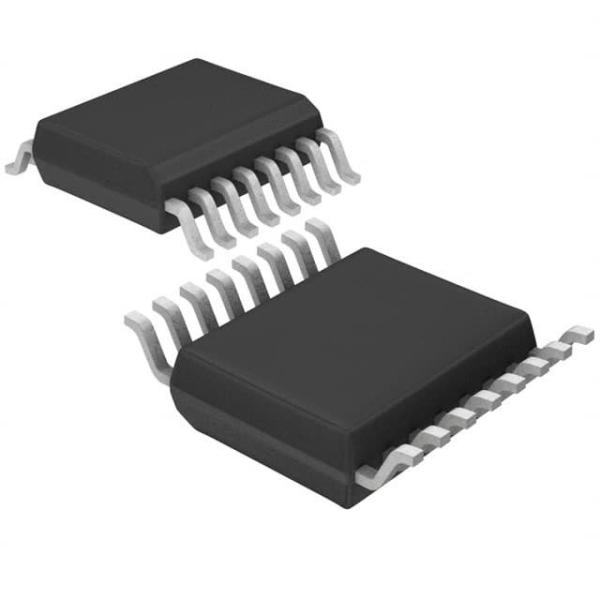

OPA4340EA/250 IC CMOS 4 CIRCUIT 16SSOP Texas Instruments Images
